Hinged Expansion Joint
Hinged Expansion Joint
Product Overview

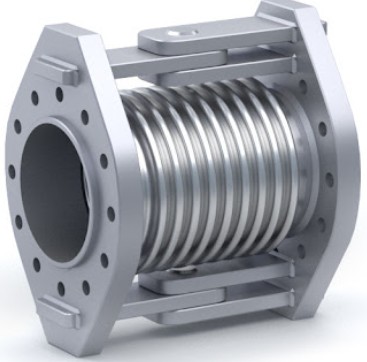

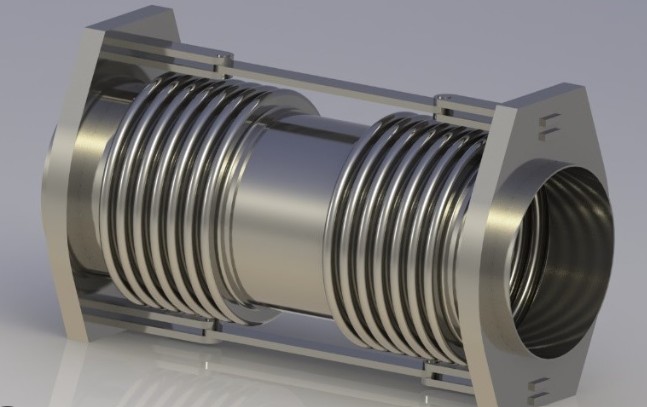

Hinged Expansion Joints are specially designed metallic bellows equipped with hinge mechanisms that allow angular movement in a single plane, while restricting axial and lateral movement. These joints are ideal for piping systems where controlled angular flexibility is required, such as pipe loops or elbow sections.The hinge assembly absorbs pressure thrust and transmits it to the anchors, eliminating load on connected equipment. They are often used in pairs or sets to accommodate thermal expansion while maintaining precise control over movement direction.
Key Features
✅ Allows angular movement only
✅ Restrains axial and lateral motion
✅Absorbs pressure thrust via hinge arms
✅Designed per EJMA / ASME standards
✅Long service life with minimal maintenance
✅Heavy-duty construction for high-pressure applications
Why Choose us
✅ Precision-engineered using FEA and EJMA compliance
✅ Fully tested for pressure and movement performance
✅ Available in standard and custom designs
✅ Designed for zero-pressure thrust and controlled motion
✅ Proven in critical applications across industries
Need a Custom Axial Expansion Joint?
Contact us with your operating parameters — pressure, temperature, movement, media, and connection type — and we’ll design the perfect solution.
