Elbow pressure balance
Elbow pressure balance
Product Overview

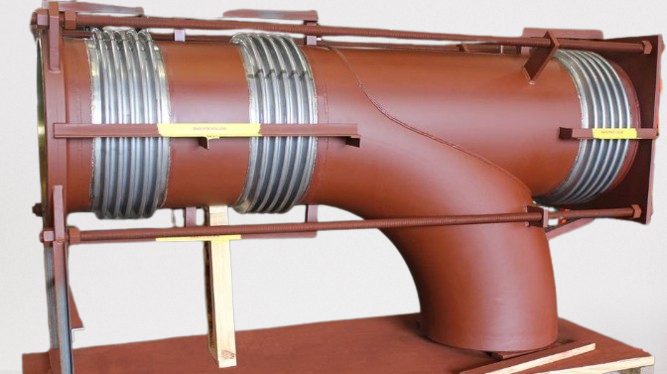

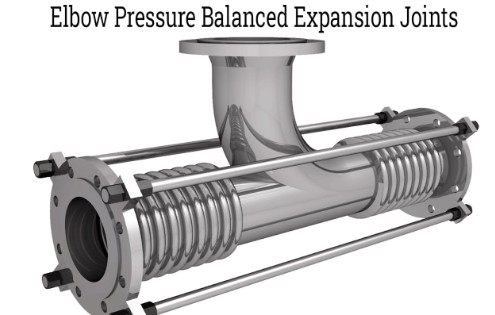

Elbow Pressure Expansion Joints (also known as Elbow Type Bellows) are specially designed for pipeline systems with directional changes, combining the functions of an elbow and an expansion joint into a single unit. These joints are engineered to absorb thermal expansion, vibration, and pressure thrust, especially where space constraints or directional flow make straight-line joints impractical.The elbow geometry allows the joint to handle angular deflection and high internal pressure, while its pressure-balanced configuration helps eliminate excessive loads on anchors and supports.
Key Features
✅Combines elbow bend + expansion capability
✅Designed to absorb thermal growth and reduce stress at pipe turns
✅Withstands high pressure and temperature cycles
✅Pressure thrust balanced (if required)
✅Compact solution for space-limited piping layouts
✅Manufactured as per EJMA / ASME standards
Why Choose us
✅Optimized for tight spaces and directional transitions
✅Designed and tested for high-pressure, high-temperature operations
✅Eliminates need for large anchor structures
✅Engineered using FEA and EJMA-based design software
✅Proven performance in critical industrial pipelines
Need a Custom Axial Expansion Joint?
Contact us with your operating parameters — pressure, temperature, movement, media, and connection type — and we’ll design the perfect solution.
